BWG8 4.19mm hot dipped galvanized fence wire factory
Short Description:
China has been a professional manufacturer and exporter of galvanized iron wire for more than 20 years. The monthly output is 2000 tons, and the wire diameter ranges from 0.7MM to 5.0 mm. The products have passed the ISO product quality certificate and are exported to more than 30 countries around the world.
- Material: Low carbon steel Q195/SAE1006/1008
- Diameter: 4.19mm
- Surface: Hot dipped galvanzied (30-280g/m2)
- Tensile strength: 300mpa-450mpa/mm2
- Elongation: 15%
- Feature: Excellent flexibility and softness
- Brand name: Five-Star Light
- OEM: Accept
- Trade term: FOB, CNF, CIF
- Payment term: By T/T, L/C, D/P
- Delivery time: 25days
- Packing: 0.2kg to 800kg with plastic film inside, Then weaving or Hessian cloth outside Or machine coil with 0.2kg 1kg then 10kg 20kg per box
Focus on providing high-quality hot dip galvanized wire
Production and exporter 20 years
BWG8 hot dipped galvanized wire
Description of complete parameters of BWG8 galvanized iron wire
I. Basic specifications
BWG8 Birmingham wire gauge, with a nominal diameter of 4.191mm (usually 4.0mm in the market), belongs to coarse galvanized iron wire.
II. The material
1. Base material: low carbon mild steel Q195/Q235, SAE1006/1008 wire rod.
2. Process flow: wire rod drawing → pickling for rust removal → annealing for softening → galvanizing → coiling.
3. Mechanical properties: tensile strength 350-550 MPa; Elongation ≥10%, good flexibility and easy to bend and bind.
| LOW CARTON STEEL CHEMICAL COMPOSITION(%) | ||||
| C 0.06-0.12 | Si≤0.30 | Mn0.25-0.50 | P≤0.045 | S≤0.050 |
| Cr≤0.30 | Ni≤0.30 | Cu≤0.30 | ||
III.Product features
1. High strength: thick wire diameter, strong load-bearing and binding tension, and difficult to deform and break;
2. Anti-corrosion and durability: the zinc layer is isolated from air vapor and can be used outdoors for many years;
3. Soft and hard options: annealed soft silk is easy to bend by hand, and hard silk is suitable for weaving and fencing;
4. The surface is bright and uniform, the zinc layer has strong adhesion, and it is not easy to lose zinc powder;
5. Adaptation and reprocessing: it can be bent, welded, braided, and nailed by secondary wire drawing.
IV. Surface treatment methods (two categories)
1. Hot-dip galvanizing (the mainstream export of foreign trade) -Process: steel wire is immersed in molten zinc to form alloy zinc layer; -Zinc coating weight: 45–180 g/㎡, with long anticorrosion life, preferably in seaside and rainy areas; -Appearance: matte silver gray, thick and wear-resistant zinc layer.
2. Galvanizing (cold galvanizing, short-term inland use) -Process: electrolytic zinc plating; -Weight of zinc coating: 10–18g/㎡, with thin and bright coating; -Disadvantages: poor salt spray resistance, not suitable for long-term outdoor use in coastal areas. Optional additional processing PVC/PE coated galvanized wire (outer plastic, scratch-proof, more corrosion-resistant, mostly used for garden fences).
V.Export standard packaging

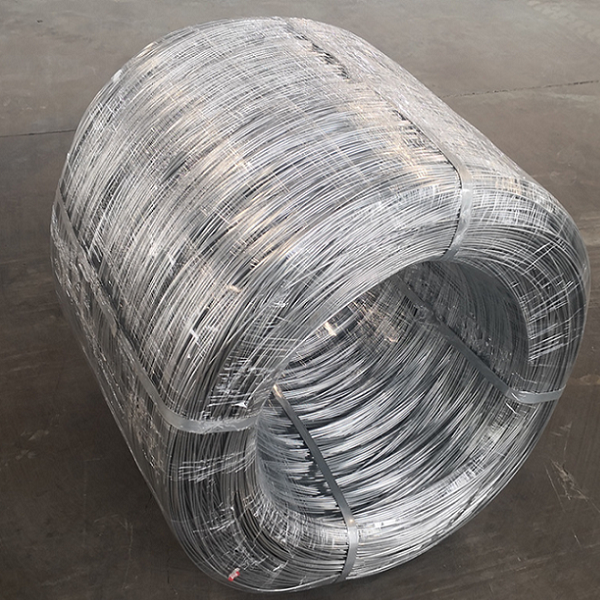

1. Single roll specifications: 25kg/ roll, 50kg/ roll (10–100 kg can be customized);
2. Inner layer: wrapped by waterproof PE plastic film, moisture-proof and oxidation-proof;
3. Outer layer: PP woven bag/hessian cloth wrapped and bound;
4. Reinforcement: each roll is bound tightly with steel belt/iron wire to prevent it from being scattered by sea;

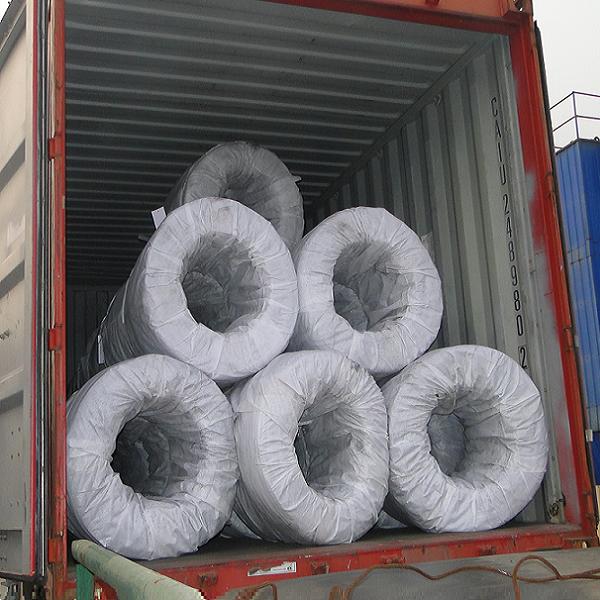

5. Whole container loading: multiple volumes are stacked on solid wood pallets, and stretched films are wound to facilitate forklift loading and unloading;
6. Label: the outer bag is marked with BWG8, weight, material, galvanized type, country of origin and HS code (7217200000).
VI. Main uses
1. Agricultural animal husbandry: tying branches in orchards, fences for cattle and sheep pastures, and skeleton of breeding cages;
2. Construction project: large-scale steel bar binding, scaffolding fixing and heavy building materials packaging;
3. Wire mesh weaving: raw materials for welding mesh, guardrail mesh, gabion mesh and slope protection mesh;
4. Industrial packaging: heavy goods, steel pipes and wood containers are bundled and fixed;
5. Hardware products: processing coarse nails, bolts and hardware accessories;
6. Municipal Gardens: Highway protective fences, garden shapes and fixed greening.
