Mild Steel Welding Electrode AWS E6010 2.5MM 3.2MM 4.0MM

Short Description:

China professional supplier of welding materials since 1998!

Products name: Welding electrode
Original place: Hebei China
Model : AWS E6010
Thickness: 2.5mm 3.2mm 4.0mm 5.0mm
Length: 300mm 350mm 400mm 450mm
OEM: Accept
Trade term: FOB CNF CIF
Payment term: T/T L/C at sight
Delivery time: Approx 25days
Electrode Packing: 20kg/carton
Main market : European Union,America, South America,Middel East etc

Product Detail

Product Tags

Mild Steel Welding Electrode AWS E6010

E6010 High-cellulose Sodium-type drug Pili goes down to covered electrode. This covered electrode conforms to the China standard GBE4310. It has several outstanding features: firstly, the welding performance is particularly good. When the DC reverse power supply is used, the arc blowing force is large, which is especially suitable for single-sided welding and double-sided molding. After welding, there is less slag, which is easy to clean, and the welded lines are very beautiful. Secondly, it has high construction efficiency, fast welding speed and excellent performance in butt welding of long-distance pipelines, which can completely replace imported covered electrode. It is also excellent in mechanical properties, and the deposited metal has strong blowhole resistance and crack resistance, which is especially suitable for alloy steel welding. The most special thing is its all-position welding ability, which is a vertical covered electrode specially designed for the girth joint of pipeline site, and it can easily cope with both vertical and inclined positions.

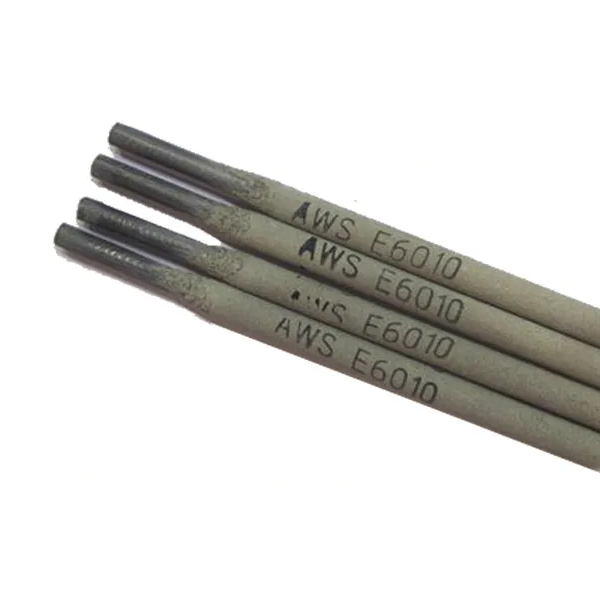

china aws e6010 welding electrode factory

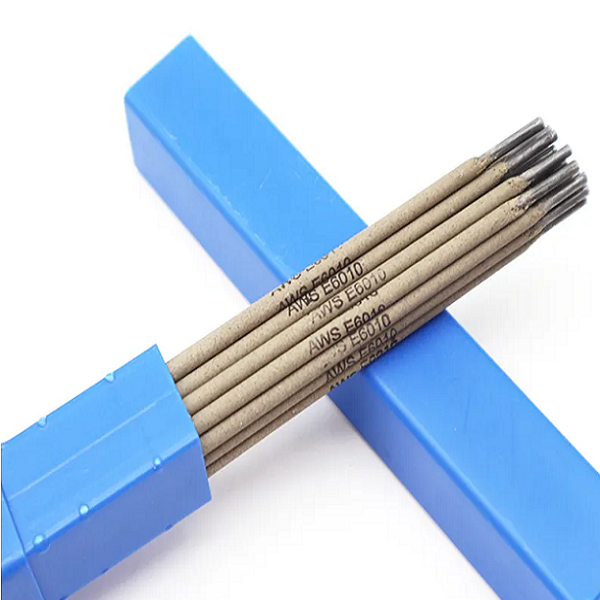

2.5MM aws e6010 welding electrode factory in china

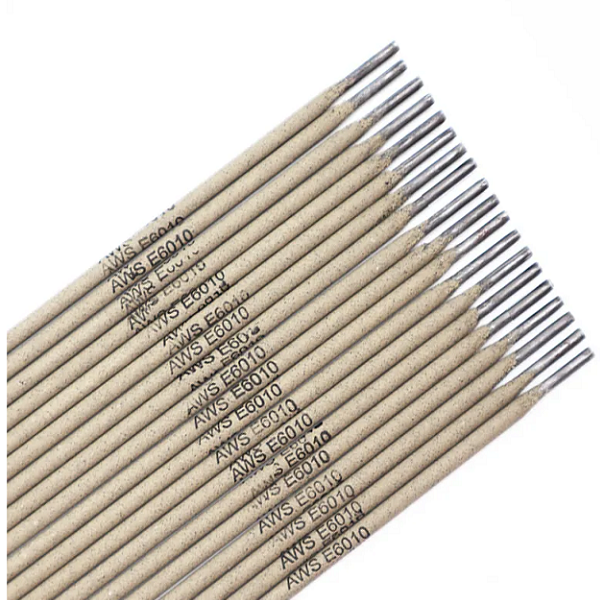

AWS E6010 WELDING ROD FACTORY 3.2MM 5KGS

SPECIFICATIONS

Thickness	Length	Packing
2.5mm	300mm	2.5kg/box 8boxes/carton
3.2mm	350mm	5.0kg/box 4boxes/carton
4.0mm	400mm	5.0kg/box 4boxes/carton
5.0mm	400/450mm	5.0kg/box 4boxes/carton

APPLICATIONS:

It is suitable for welding of low carbon steel structure as pipeline, shipbuilding and bridge etc.

CHARACTERISTICS:

E6010 is a rutile-cellulosic sodium type electrode. Can be weld for all-position (especially for vertical-down position) with DC+ only. It have excellent welding performance as stable arc, little spatter, easy slag removal and reignition-ability etc. Better molten pool control, stronger arc force and deeper penetration at vertical-down position.

ATTENTION:

1. In generally, don't need to re-dry the electrode before welding. When it be affected with damp, should be re-dry it at 70℃-90℃ for 1 hour.

2. The rust, oil, water and other impurities of the weld area must be removed before welding.

WELDING POSITIONS:

PA, PB, PC, PD, PE, PF, PG

X-ray flaw detection: Ⅱ level

ADVANTAGES:

Our welding electrode is of fewer spatters, less smog, stable arc, easy to restrike, less waste and etc. advantages. The most important advantage of our welding electrode is offing slag automatically.

CHEMICAL COMPOSITION OF ALL WELDS METAL: (WT. %)

Items	C	Mn	Si	S	P	Ni	Cr	Mo	V
Requirements	≤0.20	≤1.20	≤1.00	≤0.035	≤0.040	≤0.30	≤0.20	≤0.30	≤0.08
Typical Results	0.09	0.42	0.15	0.020	0.025	0.030	0.035	0.005	0.004
