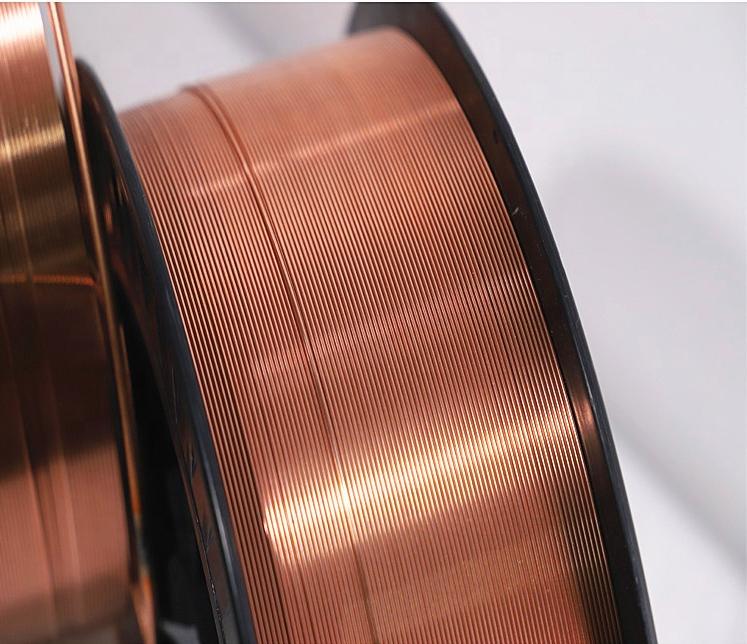

ER70S-6 Copper-Coated Solid Welding Wire for Mild Steel
Short Description:
ER70S-6 is a high-performance MIG welding wire designed for carbon and mild steel fabrication. Engineered with a copper-coated finish, this solid wire delivers superior arc stability, reduced spatter, and excellent weld bead appearance.
ER70S-6 SOLID WELDING WIRE
ER70S-6 is a solid low carbon steel filler wire rod used for Tig welding and Mig/Mag welding applications.it is used widely for welding of mild steel, plain carbon steel, and carbon steel. It is also used for dissimilar welding between carbon steel to Low alloy steel.The wire can be used for thin sheet metal (Small diameters) and thick parts welding as well. The shielding gas when using the wire with Gas Tungsten Arc Welding (TIG) is pure argon.
| Specification | Package |

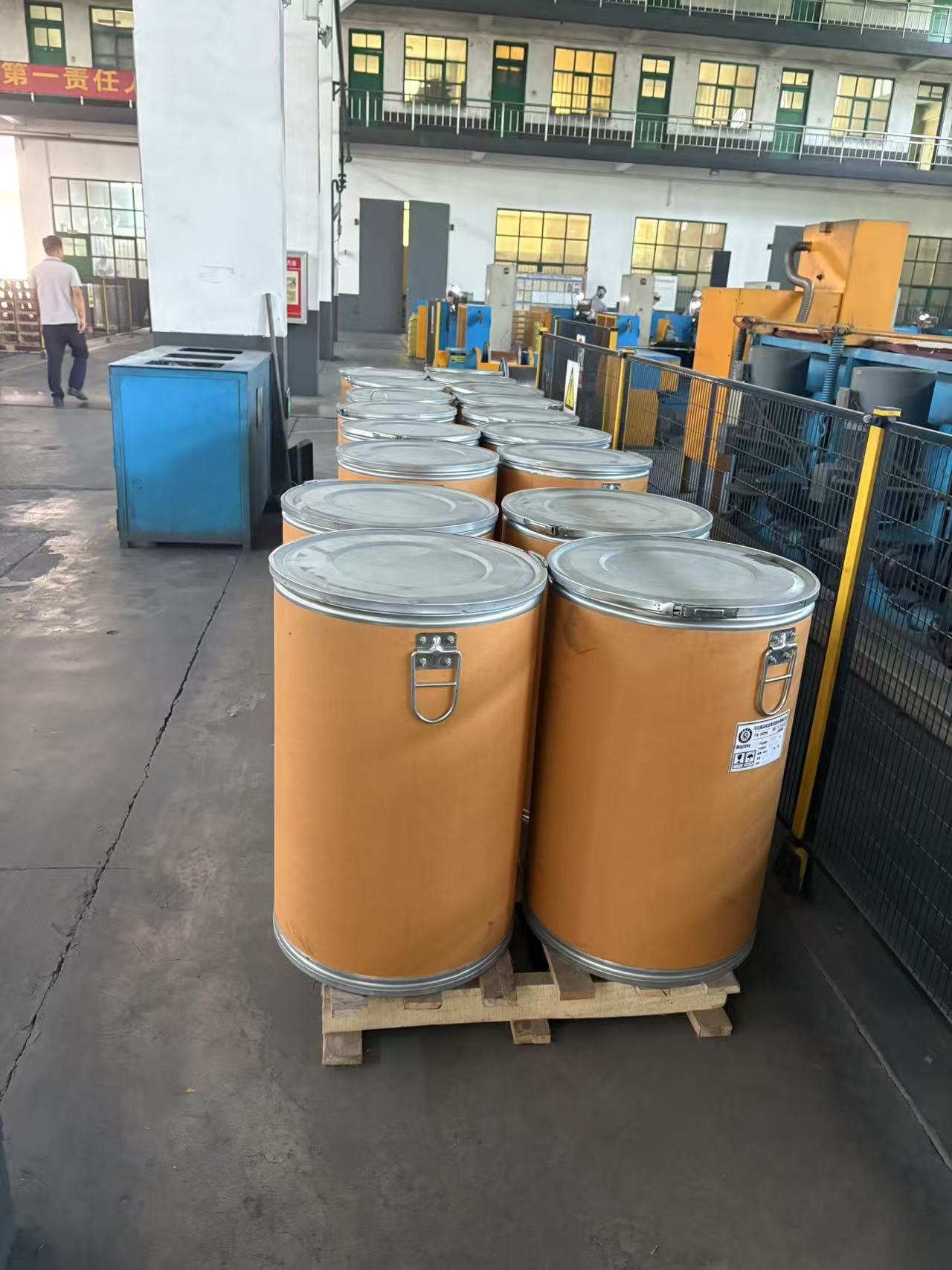

| 0.8mm | 5kg/spool 15kg/spool 250kg/drum |
| 1.0mm | |
| 1.2mm |
| Chemical Composition(%) | |||||
| C | Mn | Si | S | P | Cu |
| 0.06-0.15 | 1.4-1.85 | 0.85-1.15 | ≤0.035 | ≤0.025 | ≤0.5 |
Why Choose ER70S-6?
- Excellent feedability for automated and manual MIG welding
- High deposition rate increases welding productivity
- Low spatter for minimal post-weld cleaning
- Great performance even on slightly rusty or oily surfaces
- Ideal for construction, machinery, and general fabrication
Typical Uses:
- General fabrication and manufacturing
- Welding of tanks, steel frames, pressure vessels
- Pipe welding and shipbuilding applications
Technical Advantages:
- Excellent wetting action and bead contour
- High silicon and manganese for better tolerance of rust and scale
- Stable arc and smooth wire transfer
