J421 AWS E6013 welding elecrode 3.2mm x 350mm for welding low carbon steel structures
Short Description:
China professional supplier of welding materials since 1998!
- Products name: Welding electrode
- Original place: Hebei China
- Model : AWS E6013
- Thickness: 3.2mm
- Length: 350mm 400mm 450mm
- OEM: Accept
- Trade term: FOB CNF CIF
- Payment term: T/T L/C at sight
- Delivery time: Approx 25days
- Electrode Packing: 20kg/carton
- Main market : European Union,America, South America,Middel East etc

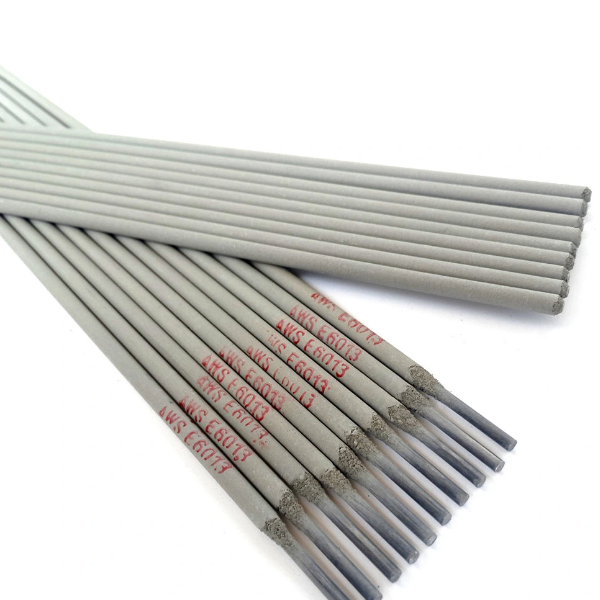

AWS E6013 Welding electrode 3.2mm x 350mm
The E6013 is a carbon steel electrode with a titanium-calcium type coating, classified as an acid electrode. It is suitable for both AC and DC power supplies and can be used for all-position welding. This electrode offers excellent welding process performance, with stable operation, easy arc ignition, aesthetically pleasing weld bead formation, and easy slag removal. The tensile strength of its deposited metal is no less than 420 MPa.
Primarily used for welding low-carbon steel structures, this electrode is especially well-suited for thin sheet and small components, as well as for cap passes where the appearance and smoothness of the weld surface are of high importance. Common sizes available include 2.5mm, 3.2mm, 4.0mm, and 5.0mm.
SPECIFICATIONS
| Thickness | Length | Packing |
| 2.5mm | 300mm | 2.5kg/box 8boxes/carton |
| 3.2mm | 350mm | 5.0kg/box 4boxes/carton |
| 4.0mm | 400mm | 5.0kg/box 4boxes/carton |
| 5.0mm | 400/450mm | 5.0kg/box 4boxes/carton |
APPLICATIONS:
It is suitable for welding low carbon steel structure, especially for welding thin plate steel with short discontinuous weld and requirement of smooth welding pass.
CHARACTERISTICS:
E6013 is a rutile type electrode. Can be welding by both AC & DC power source and can be applied in all-position. It have excellent welding performance as stable arc, little spatter, easy slag removal and restrick-ability etc.
ATTENTION:
Usually, it’s no need to re-dry the electrode before welding. When it was affected with damp, should be redried 150℃-170℃ for 0.5-1 hour.
WELDING POSITIONS:
PA, PB, PC, PD, PE, PF
X-ray flaw detection: Ⅱ level
DEPOSIT COMPOSITION (QUALITY SCORE): %
|
items |
C |
Mn |
Si |
S |
P |
Ni |
Cr |
Mo |
V |
|
Requirements |
≤0.10 |
0.32-0.55 |
≤0.30 |
≤0.030 |
≤0.035 |
≤0.30 |
≤0.20 |
≤0.30 |
≤0.08 |
|
Typical Results |
0.08 |
0.37 |
0.18 |
0.020 |
0.025 |
0.030 |
0.035 |
0.005 |
0.004 |
MECHANICAL PROPERTIES:
|
items |
Tensile Strength Rm/MPa |
Yield Strength Rel/Rp0.2 MPa |
Elongation A/% |
Charpy V-Notch KV2(J)0℃ |
|
Requirements |
440-560 |
≥355 |
≥22 |
≥47 |
|
Typical Results |
500 |
430 |
27 |
80 |
TYPICAL OPERATING PROCEDURES: (AC,DC)
|
Diameter (mm) |
2.0 |
2.5 |
3.2 |
4.0 |
5.0 |
|
Current (A) |
40-70 |
50-90 |
80-130 |
150-200 |
180-240 |
PACKAGING:
2.5kgs/box ,8boxes/carton;5kgs/box, 4boxes/carton,;20kgs/carton, 50cartons/pallet. 21-26MT per 1X20″ FCL.
OEM/ODM:
We support OEM/ODM and could make packaging according to your design, please contact us for detail discussion.
