3.2mm Mild Steel Welding Electrode AWS E6011
Short Description:
China professional supplier of welding materials since 1998!
- Products name: Welding electrode
- Original place: Hebei China
- Model : AWS E6011
- Thickness: 2.5mm 3.2mm 4.0mm 5.0mm
- Length: 300mm 350mm 400mm 450mm
- OEM: Accept
- Trade term: FOB CNF CIF
- Payment term: T/T L/C at sight
- Delivery time: Approx 25days
- Electrode Packing: 20kg/carton
- Main market : European Union,America, South America,Middel East etc

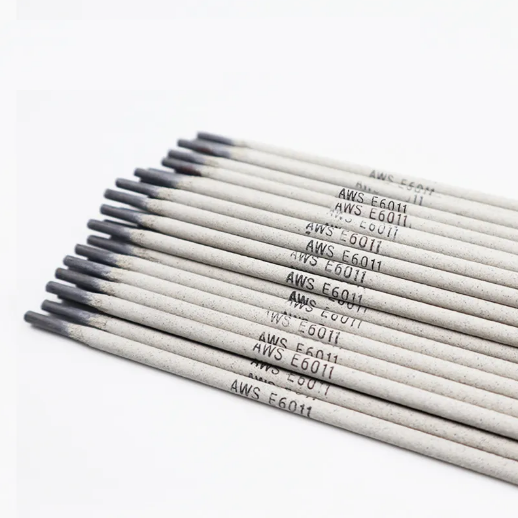

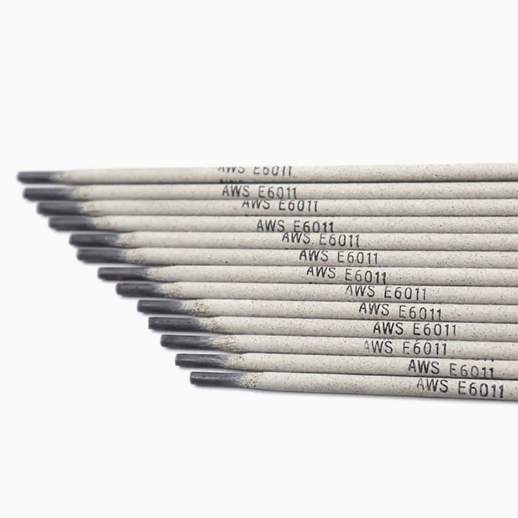

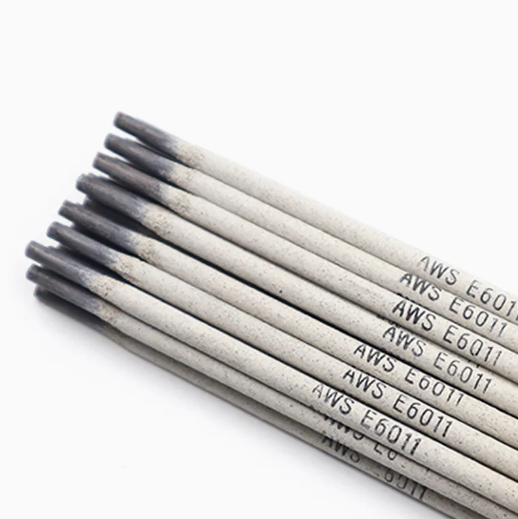

Mild Steel Welding Electrode AWS E6011
E6011 covered electrode is a kind of vertical acid covered electrode with cellulose potassium coating. It has good welding performance and all-position welding ability, dual-purpose AC and DC, high welding efficiency and large penetration depth. This kind of covered electrode is especially suitable for the operation of one-sided welding and double-sided forming in bottom welding, so it performs well in the welding of steel pipes with corresponding strength grades. In addition, E6011 covered electrode is also widely used in the welding of ships, bridges and other structures.
SPECIFICATIONS
| Thickness | Length | Packing |
| 2.5mm | 300mm | 2.5kg/box 8boxes/carton |
| 3.2mm | 350mm | 5.0kg/box 4boxes/carton |
| 4.0mm | 400mm | 5.0kg/box 4boxes/carton |
| 5.0mm | 400/450mm | 5.0kg/box 4boxes/carton |
APPLICATIONS:
It is suitable for welding of low carbon steel structure as pipeline, shipbuilding and etc.
CHARACTERISTICS:
E6011 is a rutile-cellulosic potassium type electrode. Can be weld for all-position (especially for vertical-down position) with AC and DC+. It have excellent welding performance as stable arc, little spatter, easy slag removal and reigniting-ability etc. Also it has advantages of better molten pool control, stronger arc force and deeper penetration at vertical-down position.
ATTENTION:
1. In generally, don’t need to re-dry the electrode before welding. When it be affected with damp, should be re-dry it at 70℃-90℃ for 1 hour.
2. The rust, oil, water and other impurities of the weld area must be removed before welding.
WELDING POSITIONS:
PA, PB, PC, PD, PE, PF
X-ray flaw detection: Ⅱ level
DEPOSIT COMPOSITION (QUALITY SCORE): %
|
items |
C |
Mn |
Si |
S |
P |
Ni |
Cr |
Mo |
V |
| Requirements |
≤0.20 |
≤1.20 |
≤1.00 |
≤0.035 |
≤0.040 |
≤0.30 |
≤0.20 |
≤0.30 |
≤0.08 |
| Typical Results |
0.09 |
0.42 |
0.15 |
0.020 |
0.025 |
0.030 |
0.035 |
0.005 |
0.004 |
MECHANICAL PROPERTIES:
|
items |
Tensile Strength Rm/MPa |
Yield StrengthRel/Rp0.2 MPa |
Elongation A/% |
Charpy V-Notch KV2(J)-30℃ |
|
Requirements |
≥430 |
≥330 |
≥20 |
≥27 |
| Typical Results |
475 |
400 |
26 |
80 |
TYPICAL OPERATING PROCEDURES: (AC,DC+)
|
Diameter (mm) |
2.5 |
3.2 |
4.0 |
5.0 |
|
Current (A) |
40-60 |
80-100 |
100-140 |
150-200 |
PACKAGING:
2.5kgs/box,8boxes/carton;5kgs/box, 4boxes/carton; 20kgs/carton, 50cartons/pallet. 21-26MT per 1X20″ FCL.
OEM/ODM:
We support OEM/ODM and could make packaging according to your design, please contact us for detail discussion.
