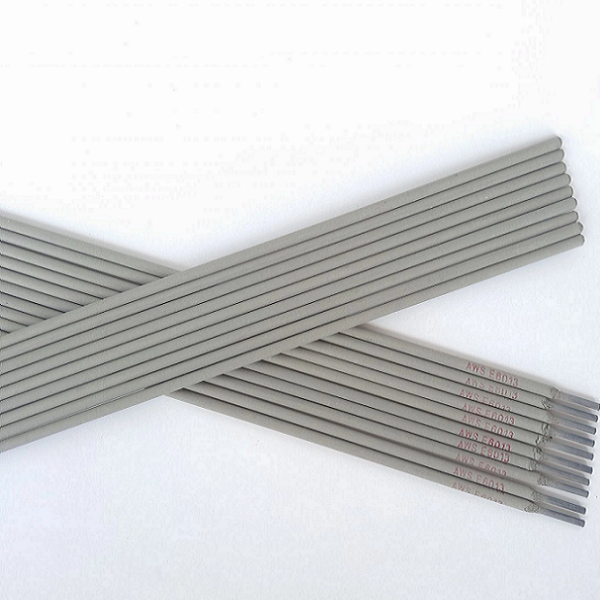

2.5mm x 350mm Mild Steel Welding Electrode AWS E6013 J421
Short Description:
China professional supplier of welding materials since 1998!
- Products name: Welding electrode
- Original place: Hebei China
- Model : AWS E6013
- Thickness: 2.5mm 3.2mm 4.0mm 5.0mm
- Length: 300mm 350mm 400mm 450mm
- OEM: Accept
- Trade term: FOB CNF CIF
- Payment term: T/T L/C at sight
- Delivery time: Approx 25days
- Electrode Packing: 20kg/carton
- Main market : European Union,America, South America,Middel East etc
Description of Rutile electrode
Rutile coating welding electrode for low carbon steel welding. It is suitable for welding low carbon steel structure, especially for welding thin plate steel with short discontinuous weld and requirement of smooth welding pass.
SPECIFICATIONS
| Thickness | Length | Packing |
| 2.5mm | 300mm | 2.5kg/box 8boxes/carton |
| 3.2mm | 350mm | 5.0kg/box 4boxes/carton |
| 4.0mm | 400mm | 5.0kg/box 4boxes/carton |
| 5.0mm | 400/450mm | 5.0kg/box 4boxes/carton |
APPLICATIONS:
It is suitable for welding low carbon steel structure, especially for welding thin plate steel with short discontinuous weld and requirement of smooth welding pass.
CHARACTERISTICS:
E6013 is a rutile type electrode. Can be welding by both AC & DC power source and can be applied in all-position. It have excellent welding performance as stable arc, little spatter, easy slag removal and restrick-ability etc.
ATTENTION:
Usually, it’s no need to re-dry the electrode before welding. When it was affected with damp, should be redried 150℃-170℃ for 0.5-1 hour.
WELDING POSITIONS:
PA, PB, PC, PD, PE, PF
X-ray flaw detection: Ⅱ level
DEPOSIT COMPOSITION (QUALITY SCORE): %
|
items |
C |
Mn |
Si |
S |
P |
Ni |
Cr |
Mo |
V |
|
Requirements |
≤0.10 |
0.32-0.55 |
≤0.30 |
≤0.030 |
≤0.035 |
≤0.30 |
≤0.20 |
≤0.30 |
≤0.08 |
|
Typical Results |
0.08 |
0.37 |
0.18 |
0.020 |
0.025 |
0.030 |
0.035 |
0.005 |
0.004 |
MECHANICAL PROPERTIES:
|
items |
Tensile Strength Rm/MPa |
Yield Strength Rel/Rp0.2 MPa |
Elongation A/% |
Charpy V-Notch KV2(J)0℃ |
|
Requirements |
440-560 |
≥355 |
≥22 |
≥47 |
|
Typical Results |
500 |
430 |
27 |
80 |
TYPICAL OPERATING PROCEDURES: (AC,DC)
|
Diameter (mm) |
2.0 |
2.5 |
3.2 |
4.0 |
5.0 |
|
Current (A) |
40-70 |
50-90 |
80-130 |
150-200 |
180-240 |
PACKAGING:
2.5kgs/box ,8boxes/carton;5kgs/box, 4boxes/carton,;20kgs/carton, 50cartons/pallet. 21-26MT per 1X20″ FCL.
OEM/ODM:
We support OEM/ODM and could make packaging according to your design, please contact us for detail discussion.
