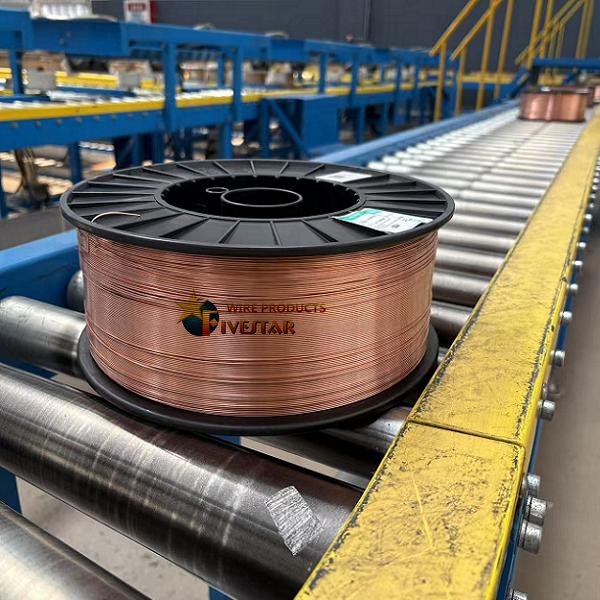

0.8mm ER70S-6 mig welding wire
Short Description:
ER70S-6 is a solid low carbon steel filler wire rod used for TIG Welding & MIG/MAG (GMAW) Welding applications. ER70S-6 is used widely for welding of mild steel, plain carbon steel, and carbon steel. It is also used for dissimilar welding between carbon steel to Low alloy steel.
0.8mm ER70S-6 welding wire
ER70S-6 is a low alloy steel gas shielded copper plated welding wire mainly used for welding low carbon steel and low alloy steel structures。
| Chemical Composition(%) | |||||
| C | Mn | Si | S | P | Cu |
| 0.06-0.15 | 1.4-1.85 | 0.85-1.15 | ≤0.035 | ≤0.025 | ≤0.5 |
| Typical Mechanical Performance of Deposited Metal | ||||
| Test Item | Rm(MPa) | Rp0.2(MPa) | A(%) | Akv(J)/29℃ |
| Guaranteed | ≥500 | ≥420 | ≥22 | ≥27 |
| Specification | Package |
| 0.8mm | 5kg/spool 15kg/spool 250kg/drum |
| 1.0mm | |
| 1.2mm |
Application Fields
ER70S-6 is widely used in the following scenarios:
1. Welding of low-carbon steel and low-alloy steel structures such as ships, engineering machinery, and pressure vessels.
2. Gas shielded semi-automatic and automatic welding for vehicles, bridges, and construction machinery.
3. High speed welding and multi pass welding of thin plates and pipes.
Technological advantages
1. Welding performance: stable arc, minimal spatter, beautiful weld formation, suitable for all position welding.
2. Anti pollution ability: High tolerance for surface oxide scale and oil stains on the base material, low sensitivity to porosity.
3. Compatibility: CO2 or argon rich gas can be used as protective gas
Hebei Five-Star Metal-Your reliable partner !

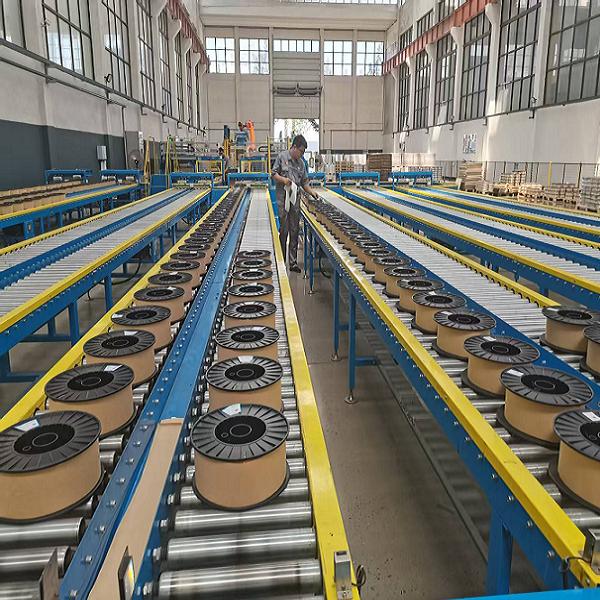

Hebei Five-Star Metal Products as a professonal manufacturer and exporter of steel wire products and construction materials for more than 20 years. Mainly Products included Steel wire ,Wire mesh, Welding materials ,Steel nails and Construction machine etc
Our products have been exported to more than 30 countries and world regions,and very popular with local market.
